Offer #1915

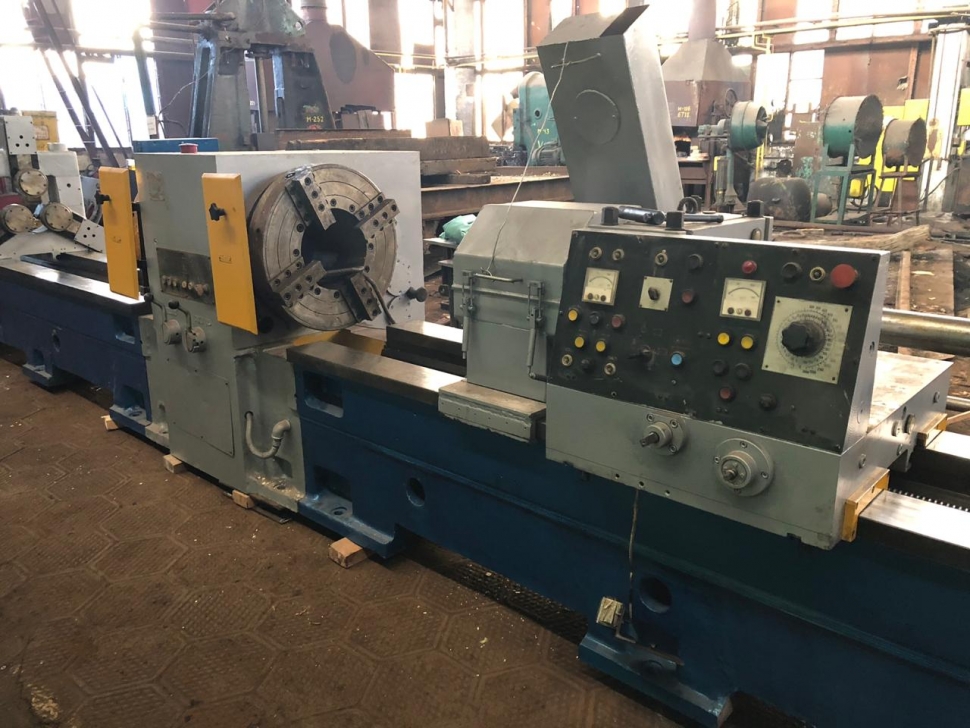

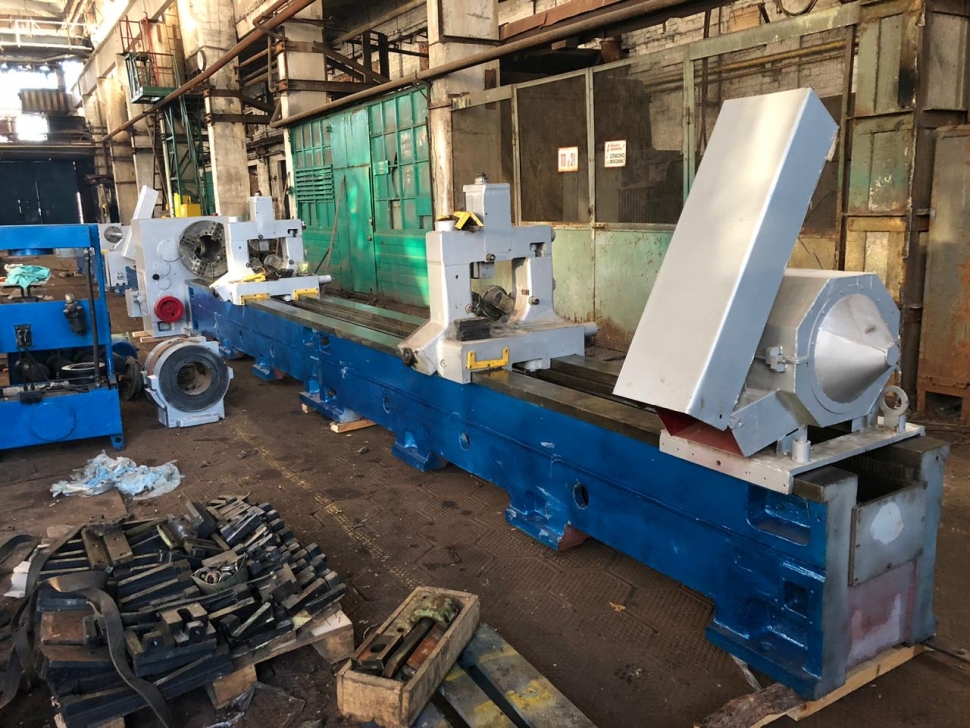

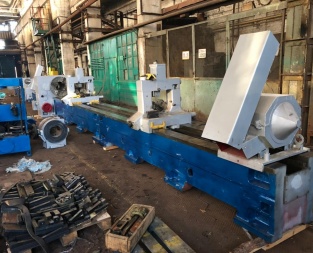

Deep hole drilling machine RYAZAN RT 263223
YOM: 1994
Manufacturer: RYAZAN
Made in: Russia
Specification:
External work-piece diameter: 50-300 mm
Work-piece length: 2500-7000 mm
Opening diameter: 40-250 mm
Max. work-piece weight: 4300 mm
Max. length of headstock stroke: 7900 mm
Spindle headstock rotation frequency: 80-500 rpm
Range of headstock feeds: 5-3000 mm/min
Rapid headstock feed: 5000 mm/min
Max. spindle headstock torque: 2,6 kgm
Max. productivity of oit station: 300 l/min
Total power of all electric motors: 63,5 kW
Overall machine dimensions:
-Length: 22950 mm
-Width: 2500 mm
-Height: 2020 mm
Machine weight: 26400 kg
