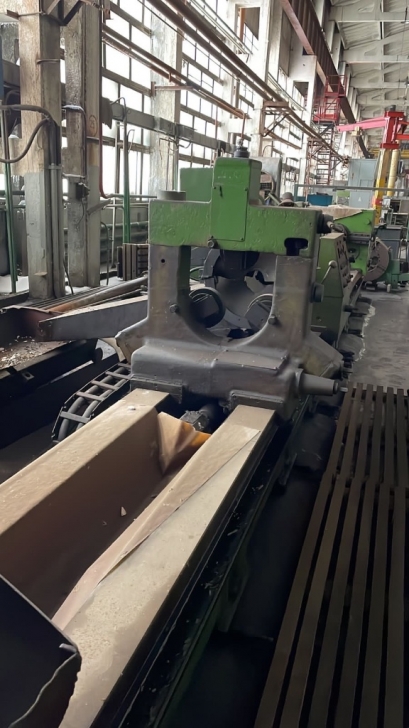

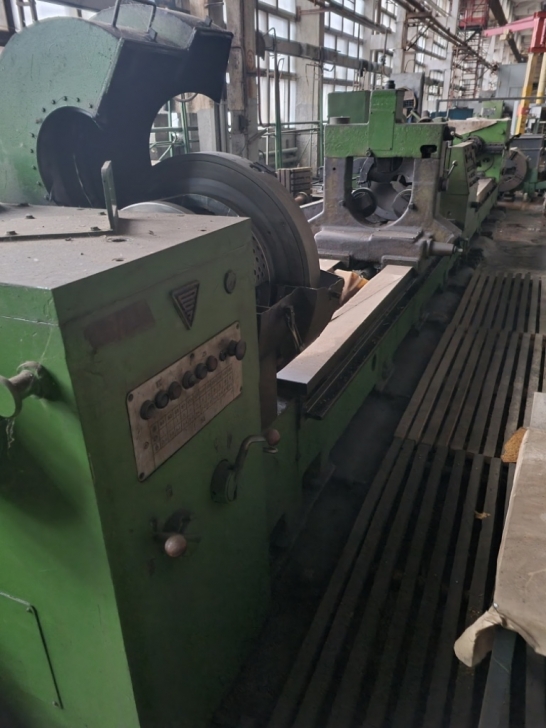

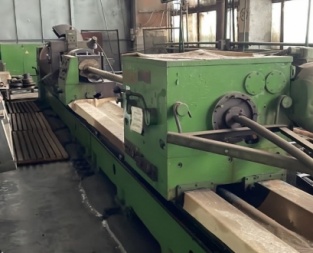

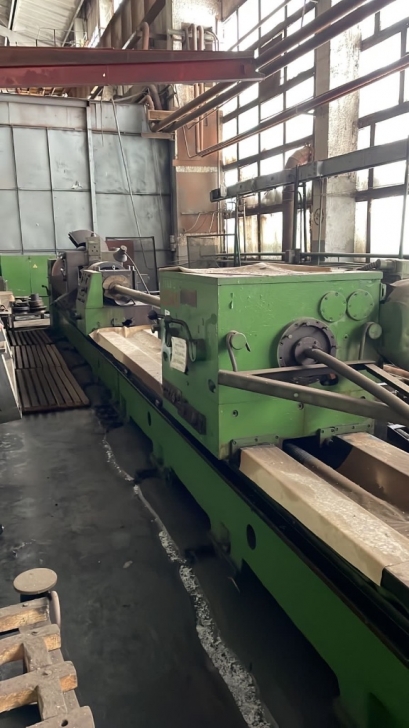

Deep hole drilling machine RT401

Offer #2179

Deep hole drilling machine RT401
Made in: 1976
Manufacturer: Ryazan
Made in: Russia

Specification:

Height from the guides: 400 mm
External diameter of the work-piece:
-Max: 400 mm
-Min: 100 mm
Length of the work-piece:
-Max: 4500 mm
-Min: 600 mm
Diameter of the work-piece holes at the:
-Continuous boring: no less than 80 mm
-Ring boring: no less than 200 mm
-Boring: no less than 300 mm
Diameter of boring opening: 55-300 mm
Amount of spindles: 1
Number of spindle speeds: 12
Rotation of spindle: 40-500 rpm
Working feed: 5-3000 mm/min
Dimensions: 11000x3500x1700 mm
Weight: 19100 kg
