Offer #1342

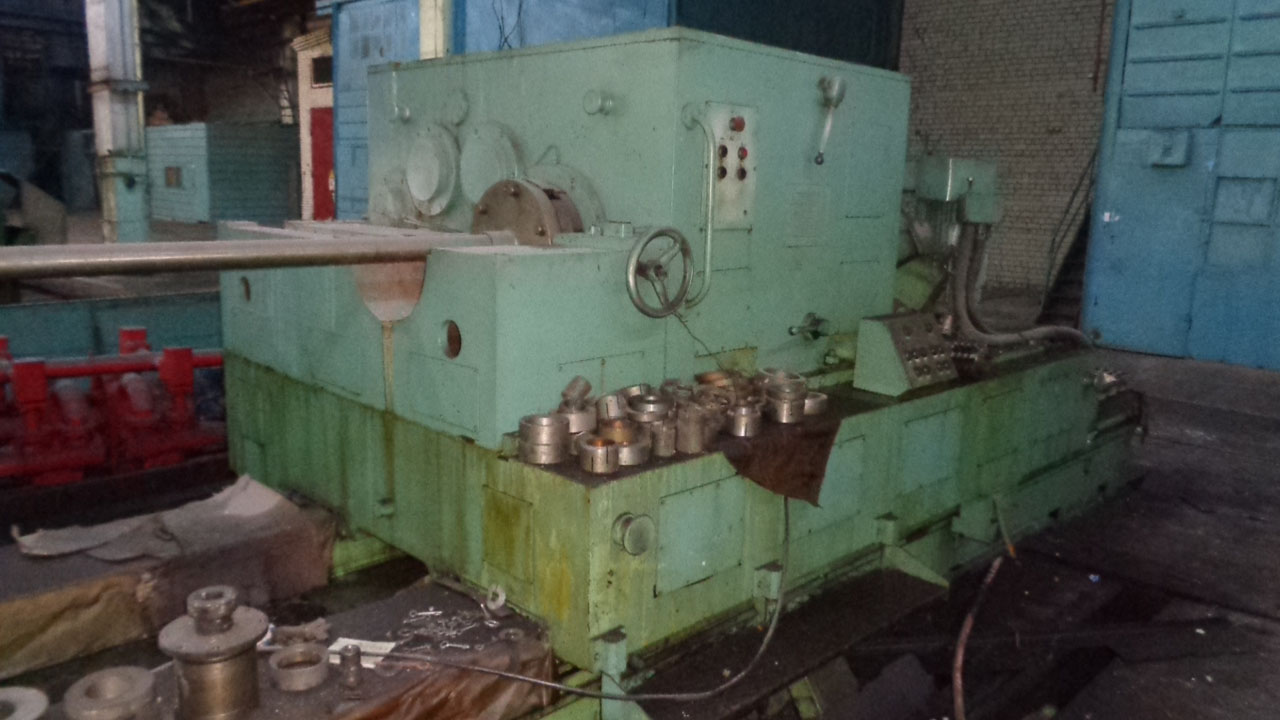

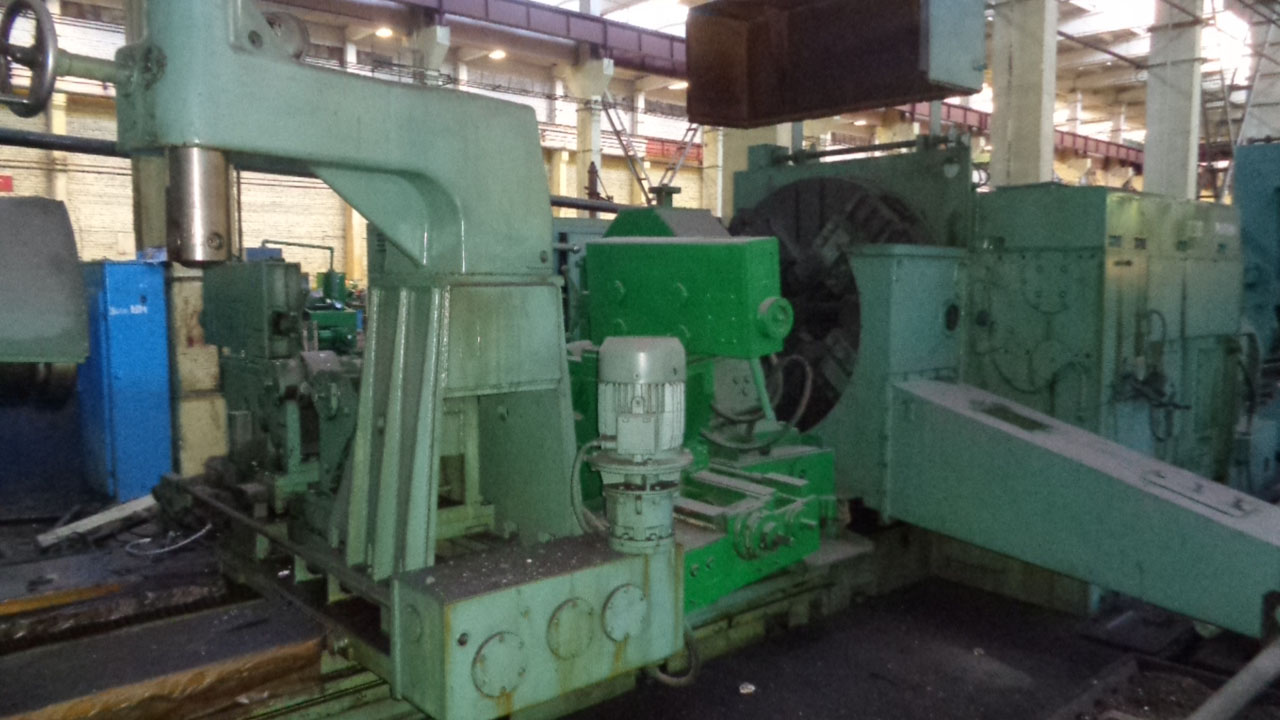

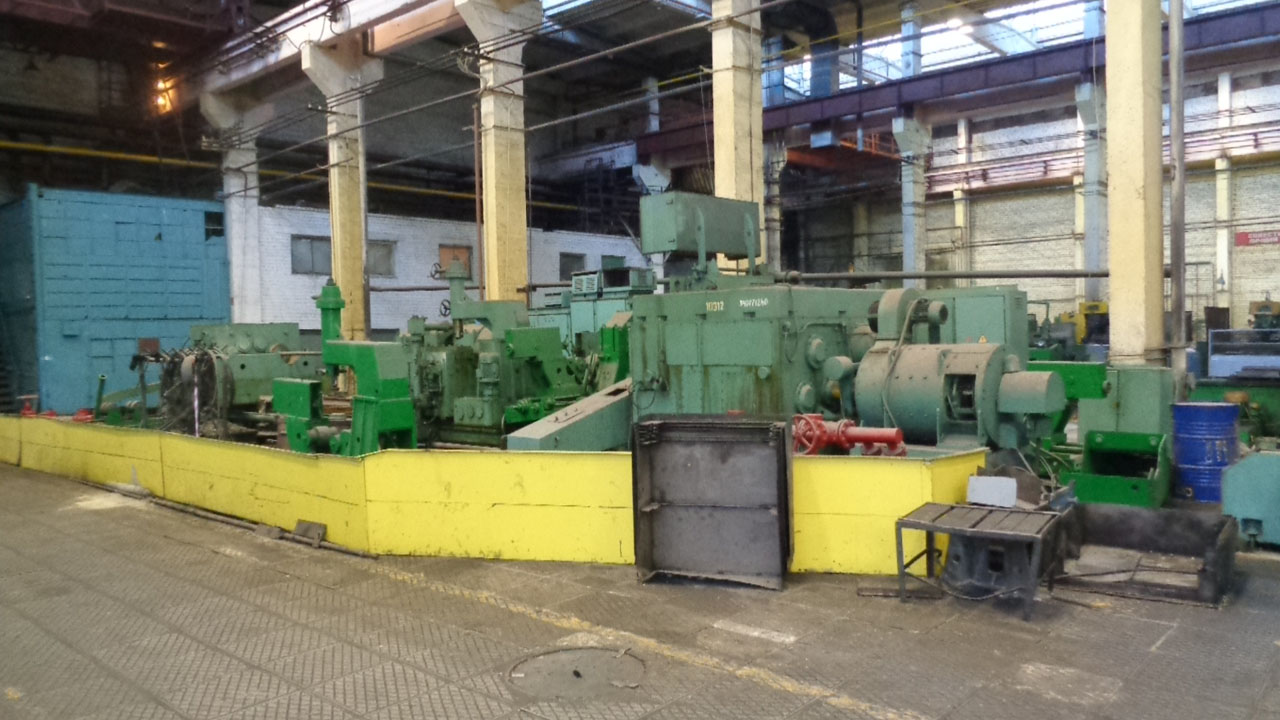

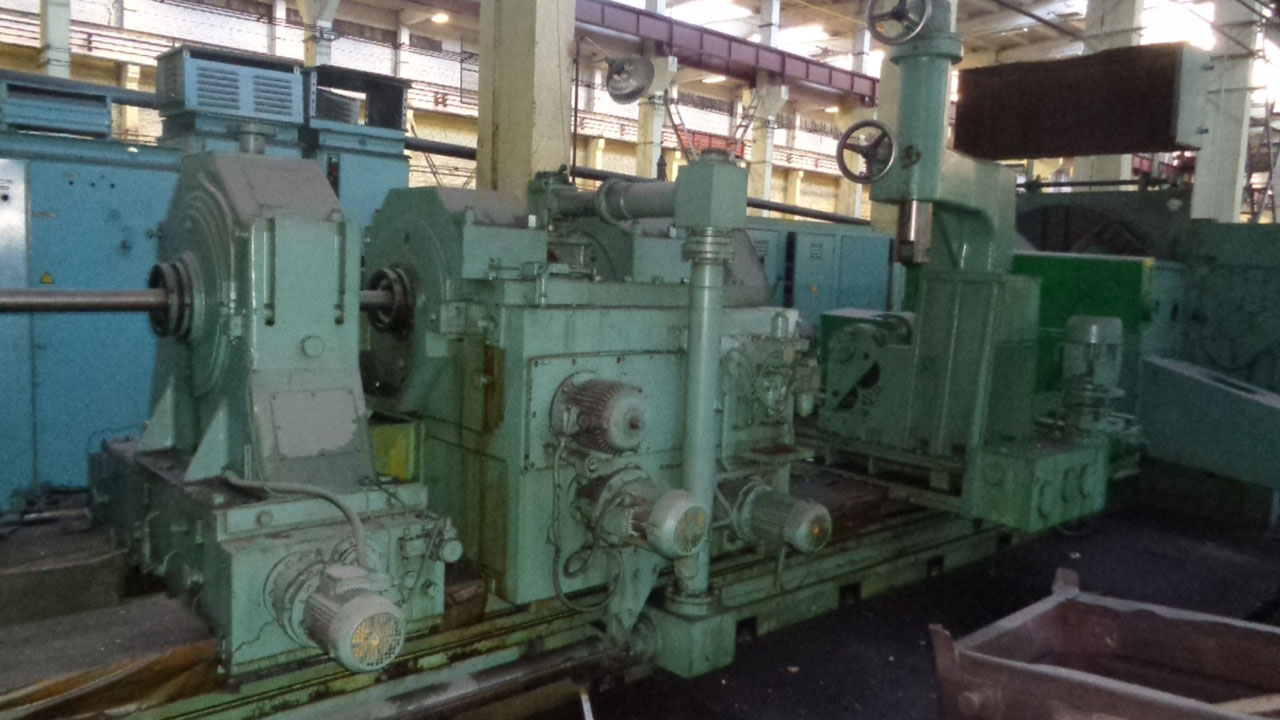

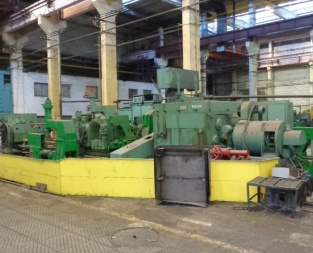

Deep hole drilling machine KZH 2880P.302F1
YOM: 1990
Manufacturer: KRAMATORSK
Made in: Ukraine
Specification:
Drilling depth: 1000-6300 mm
Max. work-piece weight: 50000 kg
Max. work-piece diameter above slides: 1600 mm
Work-piece diameter clamped in chuck: 250-1250 mm
Work-piece diameter processed in open steady rest: 250-1200 mm
Work-piece diameter processed in closed steady rest: 250-900 mm
Work-piece diameter processed in ring steady rest: 380-740 mm
Range of processed openings: 63-800 mm
Travel of bar movement unit: 10500 mm
Headstock spindle speed range: 1-400 rpm
Bar head spindle speed range: 5-540 rpm
Bar head feeding range: 10-2000 mm/min
Bar head rapid feed: 4600 mm/min
Max. headstock spindle torque: 60 Nm
Max. bar head torque: 20 Nm
Max. capacity of cooling pump: 1800 l/min
Headstock motor power: 110 kW
Bar head motor power: 85 kW
Total power required: 340 kW
Machine dimensions: 19100x6000x2660 mm
Machine weight: 100000 kg
