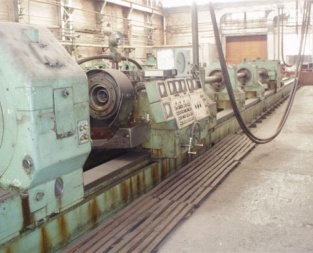

Deep hole drilling machine KG-1910

Offer #400

Deep hole drilling machine KG-1910
YOM 1980
Country of origin: Russia
Manufacturer: Kramtarosk

Condition is very nice.

Specification:

Range of boring diameter: 230 - 620 mm
Max length of pipe: 8000 mm
Max weight of work-piece:
 -With two open lunettes: 25000 kg
 -With two closed lunettes: 8000 kg
Height of machine centers from upper bed surface: 670 mm
Max external diameter of pipe: 1300 mm
Range diameter of work-piece:
 -Pinched jaws faceplate: 200-1100 mm
 -With the open lunette: 400-900 mm
 -With the closed lunette: 200-630 mm
 -With the circular lunette: 250-550 mm
Spindle speeds range (stepless regulated): 2-200 rpm
Spindle hole diameter: 700 mm
Chuck hole diameter: 700 mm
Main motor: 85 kW
Dimensions (LxWxH): 25550x3000x2290 mm
Weight: 83 ton
