Offer #749

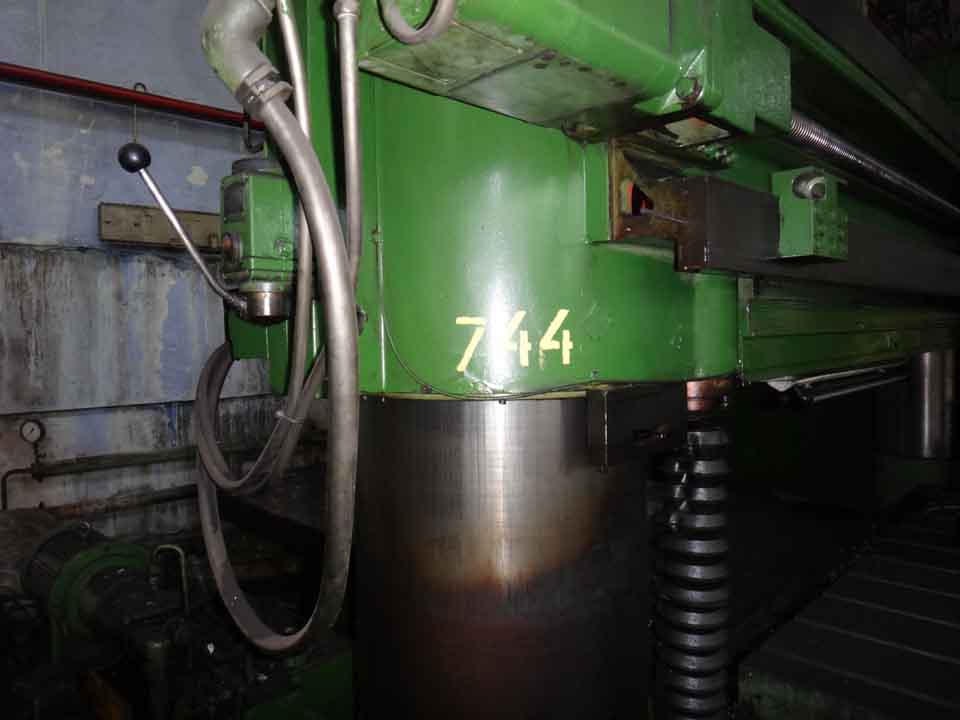

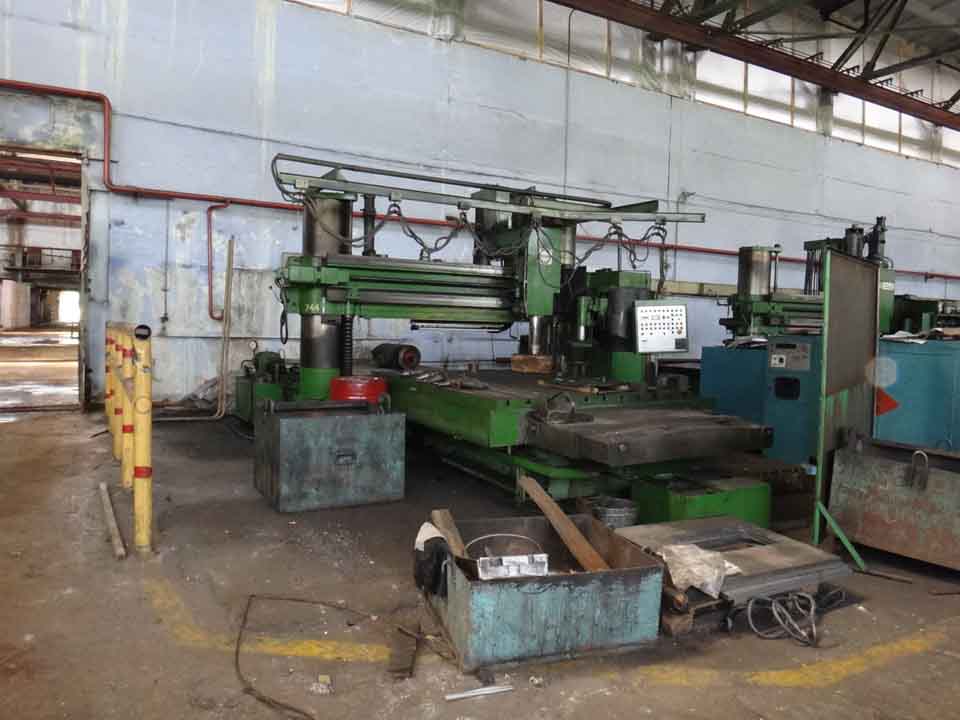

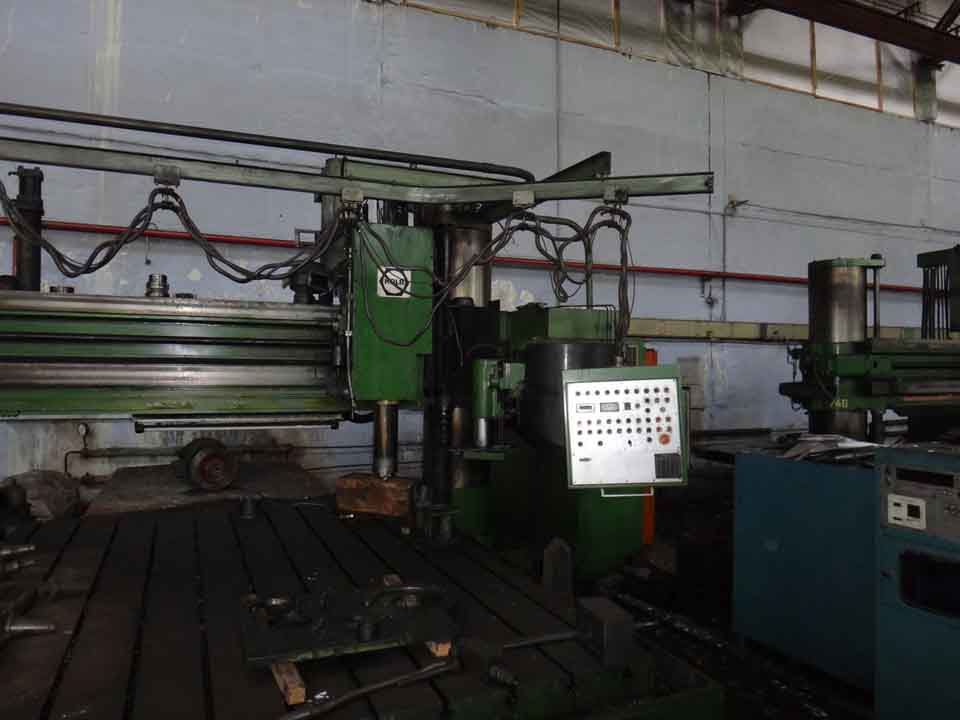

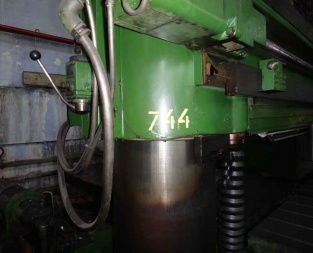

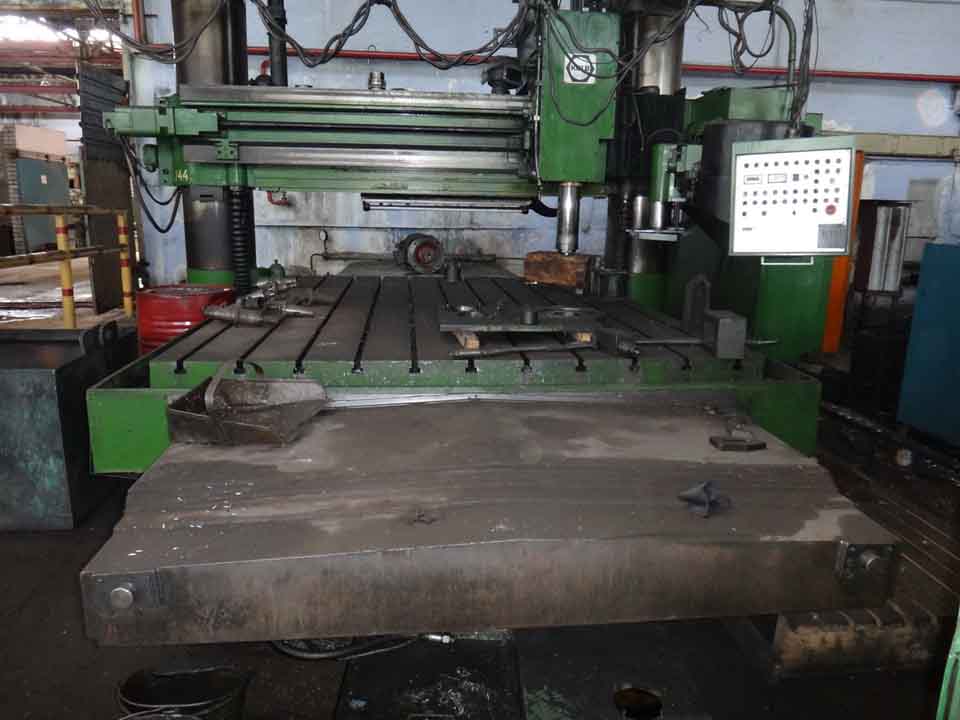

Twin-pillar coordinate drilling machine KBN60R-16
YOM: 1979
Manufacturer: F. Kolb
Made in: Germany
Machine has automatic installation for tool changing.
Magazine has 32 positions.
Specification:
Table: 3350х2200 mm
Table travel: 2500 mm
Drilling head travel: 2000 mm
Drilling depth: 500 mm
Free passage between columns: 2700 mm
Drilling spindle:
-Min: 100 mm
-Max: 1100 mm
Working table area: 2750х2200 mm
Number of drilling spindles: 1
Max work-piece weight: 10000 kg
Speeds:
Positioning/accelerated stroke/axis Х, Y, Z: 10000 mm
Number of rotation speeds: 41
Transition of gear step: 1,12
Drilling of a whole work-piece: 56 mm
Boring: 160 mm
Thread cutting (with chuck): М60х3 mm
Diameter of the cutting milling head: 125 mm
Main drive power: 24 kW
Dimensions: 6,9х4,77х4,03 m
Weight: 33700 kg
