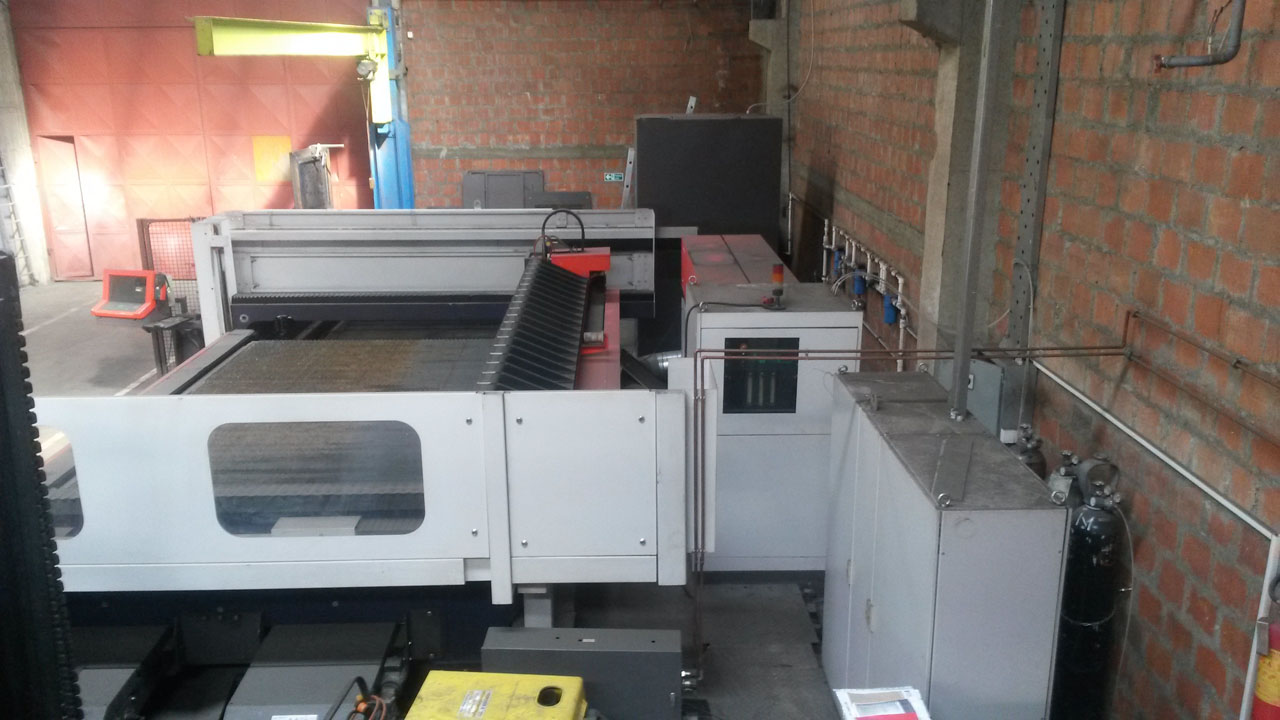

CNC Laser cutting machine BYSTRONIC BYSTAR 4025

Offer #1484

CNC Laser cutting machine BYSTRONIC BYSTAR 4025
YOM: 2003
Manufacturer: Bystronic Laser AG
Made in: Switzerland

Laser is in working condition.

Specification:

CNC control: BYSTRONIC MMS CNC 96
Running hours of machinery: 23500
Running hours of laser: 11000
Laser capacity: 4 kW
Working range:
 -X: 4048 mm
 -Y: 2524 mm
 -Z: 170 mm

Laser type: DC-tube generated
Laser range capacity: 150-4000 watt
Cooling unit: E. FURRER  WKL 400 S5
Dust exsrtaction: KELLER L CUT 4.0
Total electrical capacity: 62 kW
Space required: 14,750x8050x2950 mm
Total weight: 22000kg

Cuttable material and thickness:
 -Mild steel: 20 mm
 -Aluminium: 8 mm
 -Inox: 12 mm

Standard option:
-Cutting machine with operation safety advice by cutting, loading and unloading
-Automatic table changer
-2 cutting heads with 5”+7,5” lenses
-Reflexion absorber, cut control
-Partical dust extraction system
-Glas revision 2012
