Offer #1259

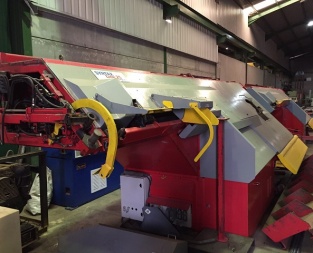

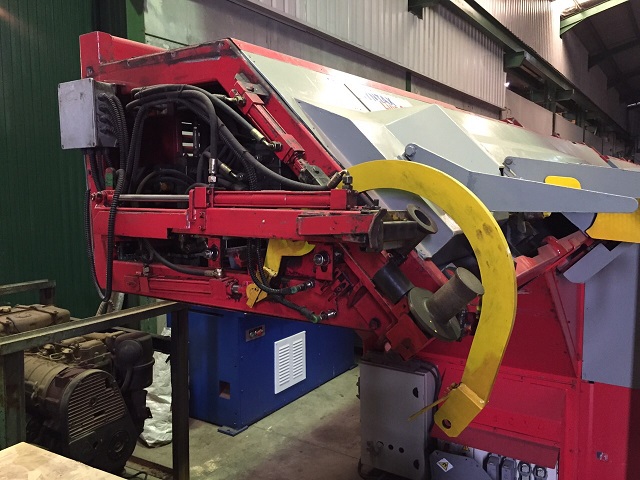

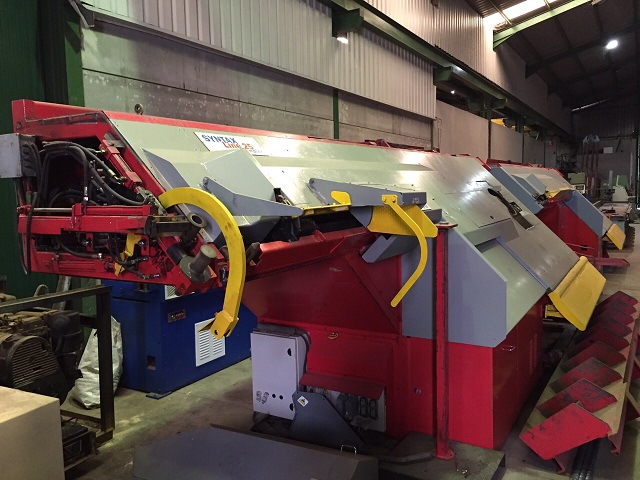

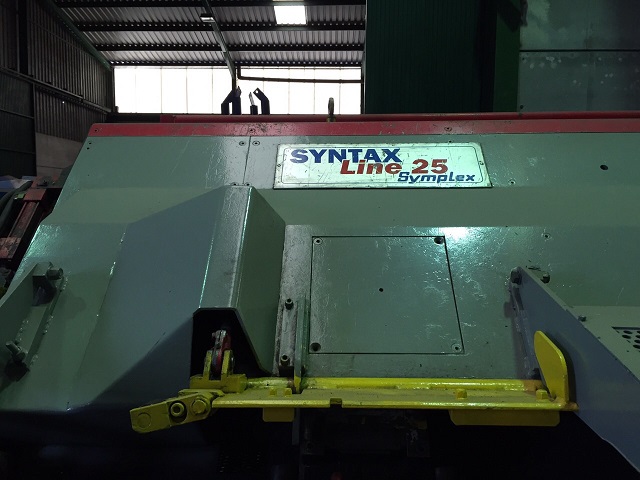

Cutting and shaping equipment MEP SYNTAX LINE 25
YOM: 2005
Manufacturer: MEP S.p.A.
Made in: Italy
Machinery comes with automatic bar loading. Automatic processing center intended for a production of large stirrups, one- or two-sided bent bars and 12 m straight bars. It has double tray trolley download and raw bar.
. Electronic programmer type Industrial PC
. Graphical Display of stirrups with simulation video
. Memorization of production data
Specification:
Working hours: 9800
SINGLE STRAND UP TO
Hot rolled, smooth or ribbed wire: from Ø 8 to Ø 26 mm
Fy = 600 N/mm² - ft = 700 N/mm² (other loads upon request)
DOUBLE STRAND UP TO
Cold drawn, hot rolled, smooth or ribbed wire: From Ø 8 to Ø 16 mm
Fy = 600 N/mm² - ft = 700 N/mm² (other loads upon request)
DOUBLE BAR MINIMUM SQUARE STIRRUP DIMENSIONS
Minimum with Ø 12 mm wire (optional bending pin): 350 mm x 350 mm
Maximum if clockwise: 1500 mm x 1500 mm
Maximum if counterclockwise (with eventual optional carter extension): 3200 mm x 3200 mm

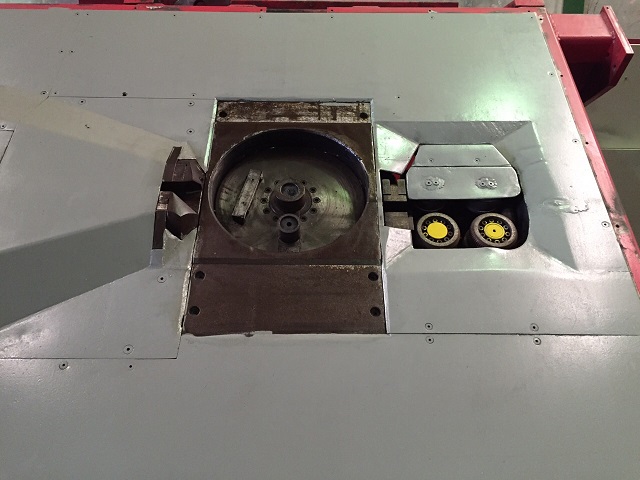

CENTRE FORMING TOOL DIAMETER
Minimum: 40 mm
Maximum (other sizes upon request): 200 mm
MAXIMUM DISTANCE BETWEEN CENTRAL BENDING PIN AND THE GROUND
Standard: 2300 mm
Optional upon request: > 2300 mm
MOBILE STORAGE RACK
8 compartments up to 12.000 mm length
(other sizes and configurations available upon request)
MOBILE COLLECTION CART
8 +2 compartments with 12,000 mm length
(other sizes and configurations available upon request)
OPERATING TEMPERATURE
Standard: -5° C / +40° C
Optional upon request: -15° C / +55° C
INSTALLED POWER
Maximum (other sizes upon request): 27,6 kW
Dimensions: 26800x8600x3105 mm
Weight: 8520 kg
