Offer #1155

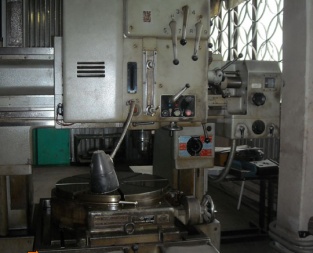

Jig boring machine SIP MP-5E
Manufacturer: SIP
Made in: Switzerland
Specification:
Longitudinal travel movement: 700 mm
Transversal movement of drilling head: 500 mm
Spindle stroke: 180 mm
Working table area: 900x770 mm
Max. pass between table and spindle: 800 mm
Min. distance between table and spindle: 200 mm
Free pass between machine columns: 875 mm
Sleeve diameter of drilling spindle: 95 mm
Spindle step: 5 mm
Number of spindle revs (12 speeds): 50-2250 rpm
Drilling feeds (4 gears): 0,04-0,21 mm/rev
Power required: 8 kVa
Max. table load: 600 kg
Machine weight (brutto): 5400 kg
