Offer #1261

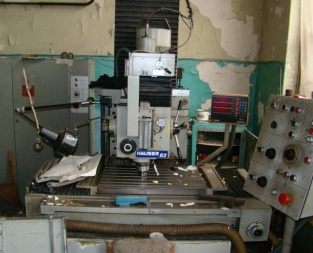

Jig boring machine HAUSER B3-DR
Manufacturer: Hauser
Made in: Switzerland
Specification:
Travel range of X, Y: 200x200 mm
Working table area: 600x380 mm
Max. table load: 300 kg
Width of T-slots: 10 mm
Number of T-slots: 6
Distance between T-slots: 50 mm
Spindle rotation frequency: 150-3000 rpm
Tool landing: Cone Morse 0
Max. drilling diameter: 30 mm
Max. boring diameter: 220 mm
Travel range:
-On X (column carriage): 400 mm
-On Y (transversal carriage): 250 mm
-On W (boring head): 450 mm
Max. quill stroke of boring spindle: 140 mm
Quil diameter of boring spindle: 85 mm
Dimensions: 1700x1330x2545 mm
Weight: 300 kg
