Offer #476

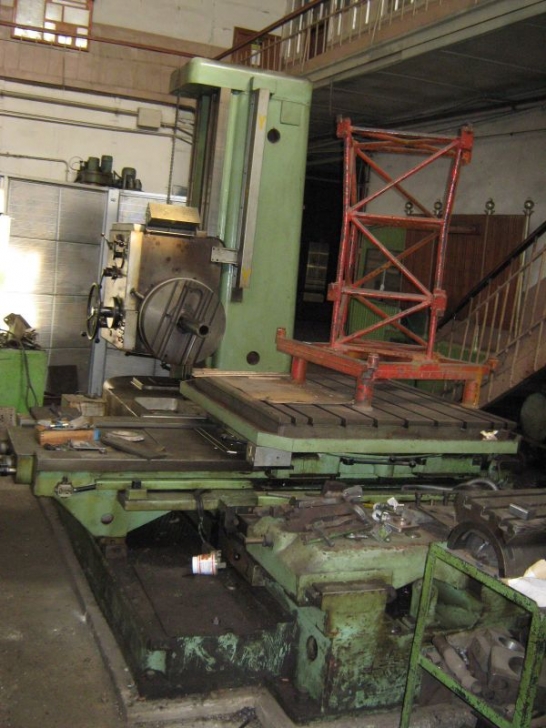

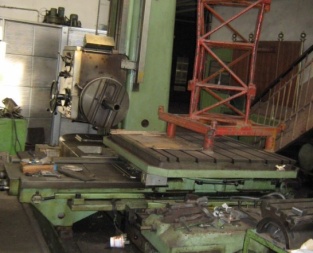

Horizontal Boring Mill TOS W100A
YOM: 1984
Coyntry of Orign: Czech Republic
Manufacturer: TOS VARNSDORF
Specification:
Spindle size: 100 mm
Spindle speed: 7-1120 rpm
Spindle Taper: ISO 50
X-Axis: 1600 mm
Y-Axis: 1120 mm
Z-Axis: 1250 mm
W-Axis: 900 mm

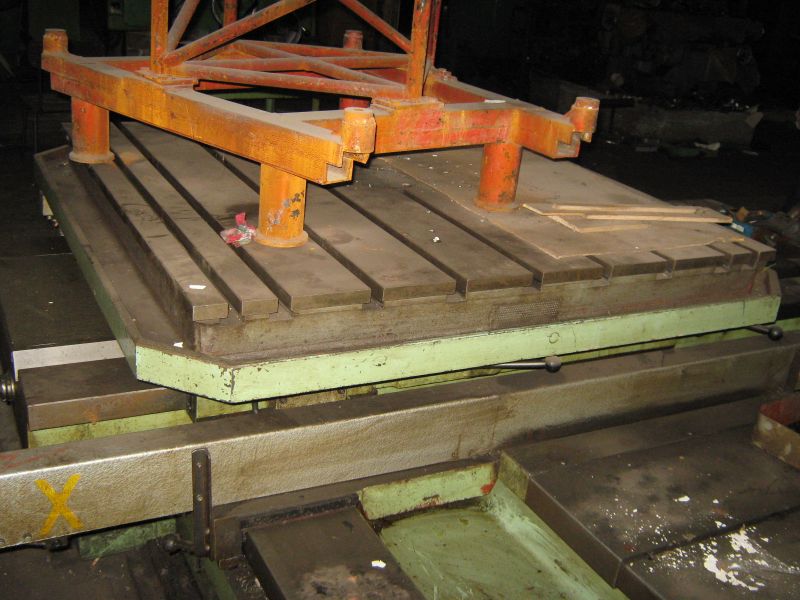

Table size: 1250x1250 mm
Table type: rotary
Max work-piece weight: 3000 kg
Facing chuck: 600 mm
Feeds for boring (32 stages): 0,02-12 mm/rev
Feeds for milling (18 stages): 18-900 mm/min
Rapid traverse (spindle stroke, headstock and table): 2800mm/min
Thread cutting range (18 stages; metric): 0,25-12 mm
Total power consumption: 15 kVA
Dimension: 6020x3000x3500
Weight: 14000 kg
