Offer #1529

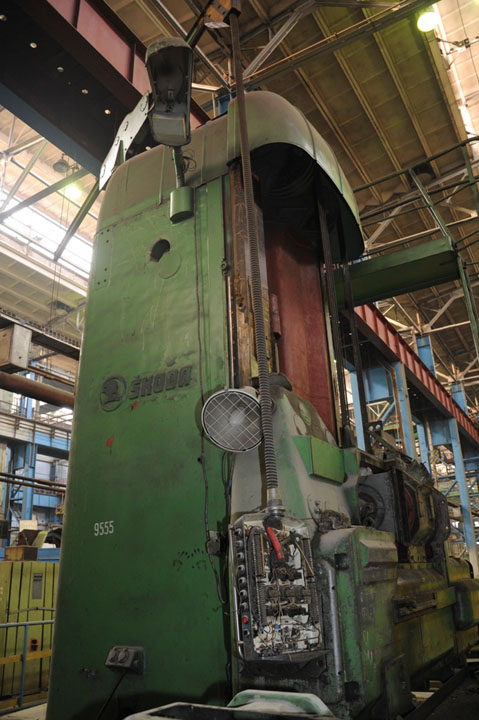

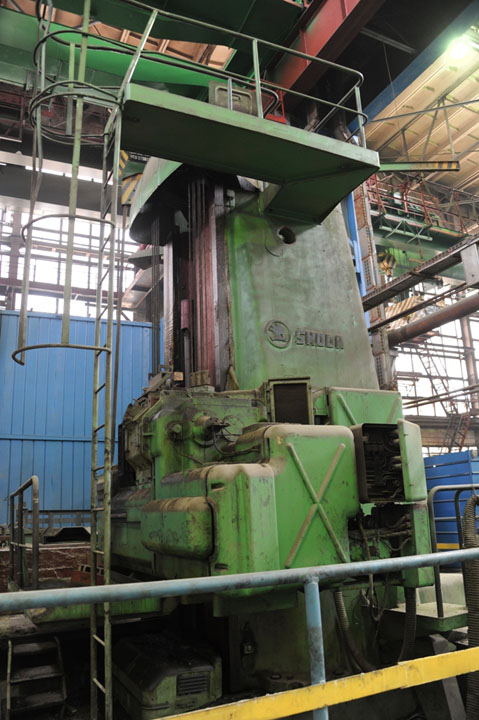

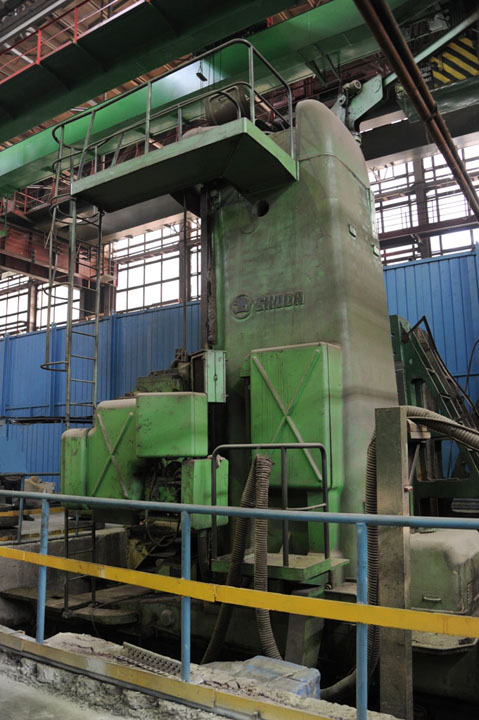

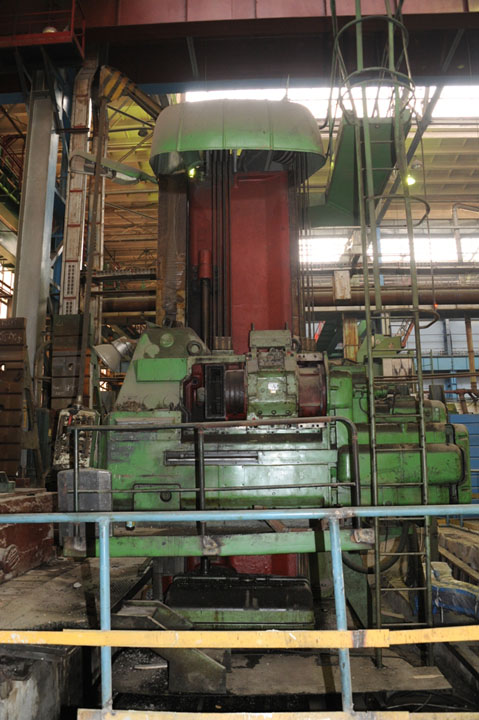

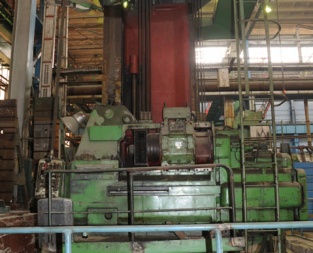

Horizontal boring machine SKODA W160
YOM: 1971
Manufacturer: SKODA
Made in: Czechoslovakia
Machinery is in working condition.
Specification:
Rotary table size: 2000x2000 mm
Max. load on table: 20 tons
Spindle diameter: 160 mm
Inner cone of spindle: 100 metrical
Max. spindle torque: 250000 kgcm
Bed height: 550 mm
Width of bed guides: 2000 mm
Max. drilling depth with boring spindle: 1600 mm
Max. move-out of quill: 1250 mm
Normal travel of spindle headstock on the column: 2500 mm
X-axis: 3000 mm
Min. height of spindle axis over bed surface: 1400 mm
Range of steplessly adjustable spindle speeds: 2-800 rpm
Range of steplessly adjustable drilling feeds (spindle and quill): 0,5-1600 mm/min
Range of steplessly adjustable milling feeds (spindle headstock and column): 1-3200 mm/min
Speed of rapid travel at drilling (spindle, quill): 1600 mm/min
Speed of rapid travel at milling (spindle headstock in vertical direction, column): 3200 mm/min
Power of adjustable electric motor of direct current of spindle drive: 6-55 kW
Range of speeds of spindle electric motor: 210-2700 rpm
Total power required: 110 kW
Machine height: 7620 mm
Machine dimensions: 5900x12440 mm
Machine weight incl. electric equipment: 68 tons
