Horizontal boring machine 2A656RF11

Offer #1203

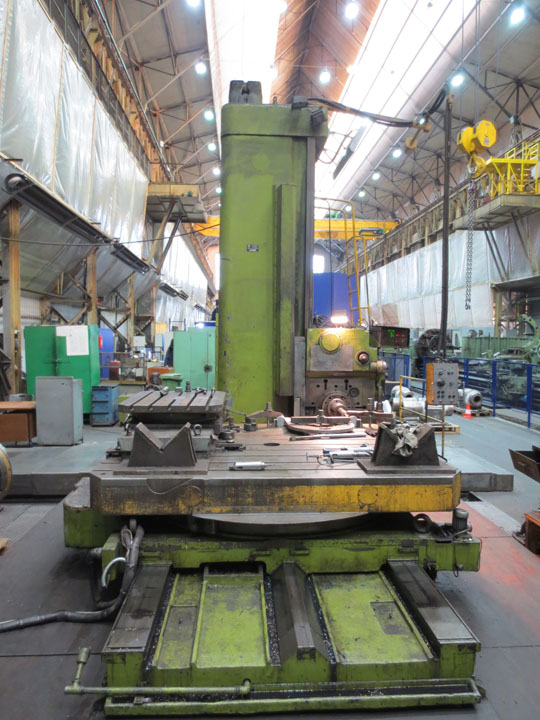

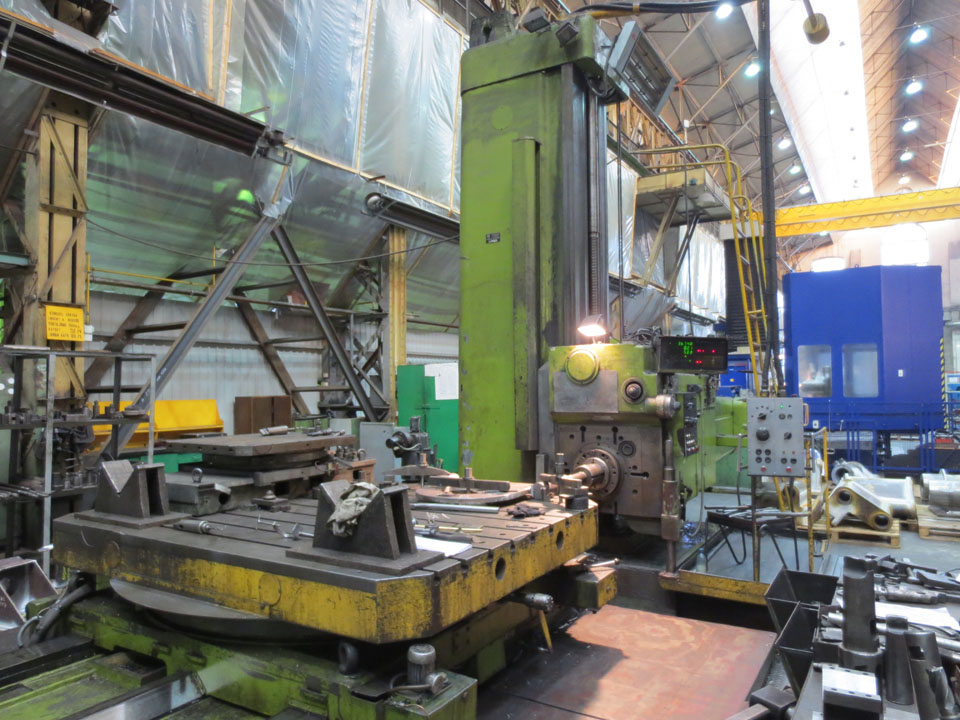

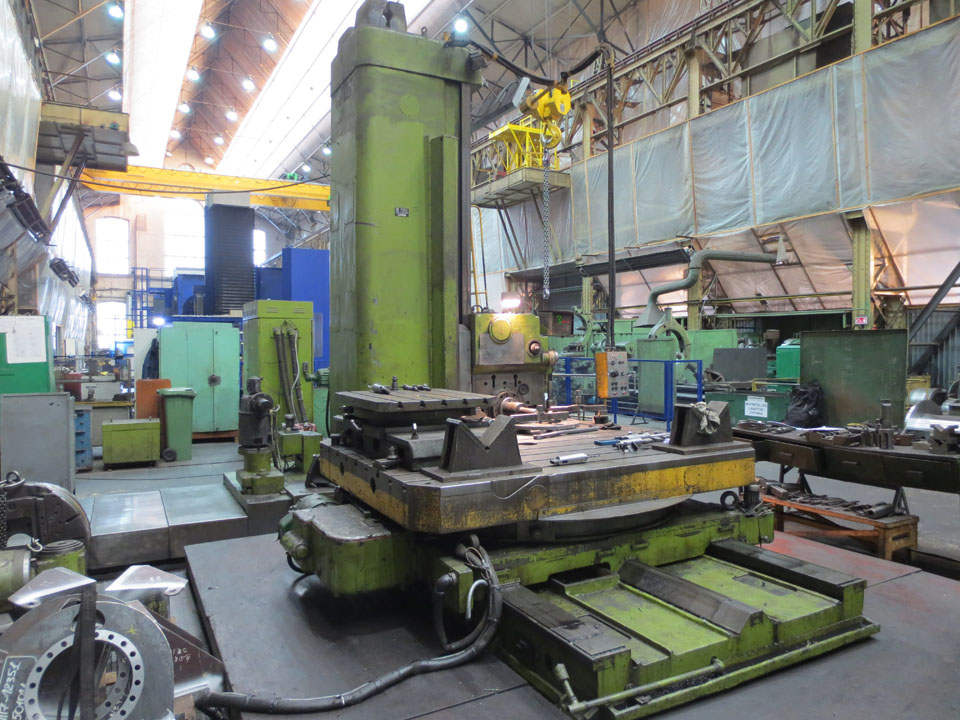

Horizontal boring machine 2A656RF11
YOM: 1992
Manufacturer: Sverdlov Plant
Made in: Russia

Machinery is under power.
Machines of model 2a656rf11 are intended for processing of heavy case details with processing of openings with an exact arrangement of axes the sizes between which are set in rectangular system of coordinates.

Specification:

Spindle diameter: 120 mm
Working table area: 2000x2500 mm
Spindle rotation frequency per minute: 7,5-950
Faceplate rotation frequency per minute: 7,5-190
Main drive electric motor power: 18,5 kW
Max. work-piece weight: 10000 kg
Vertical movement of headstock: 2500 mm
Table movement: 2000 mm
Rack movement: 2500 mm
Turntable movement: circular
The machine has indication of movement on axes X, Y, Z, W, B
Machine weight (with technological plate): 61,5 tons
The space occupied by the machine: 11500x8100x5300 mm
