Offer #1247

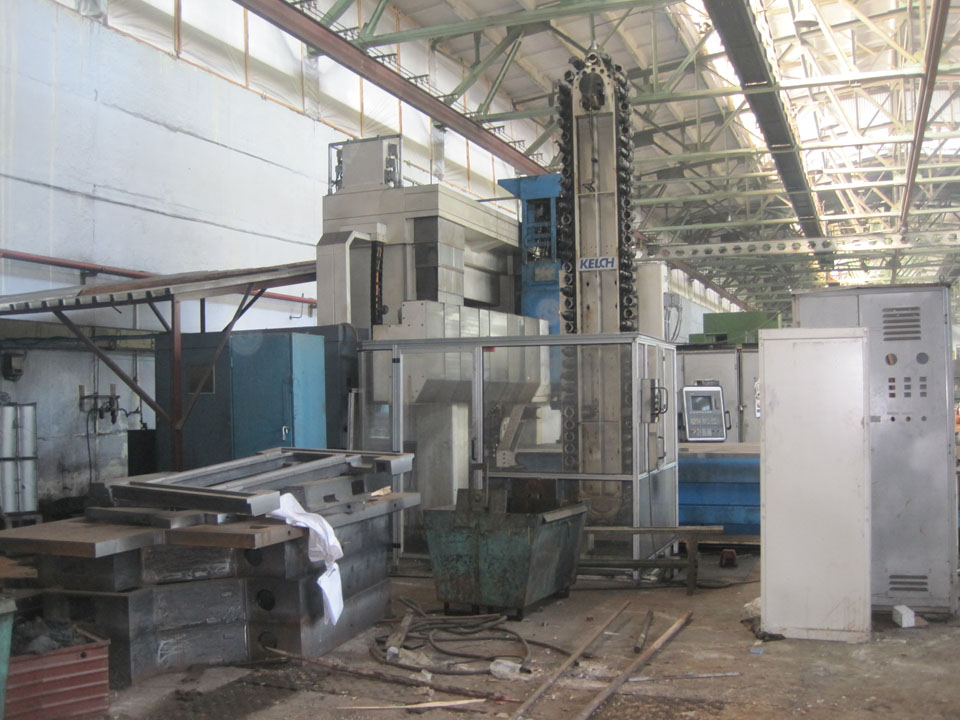

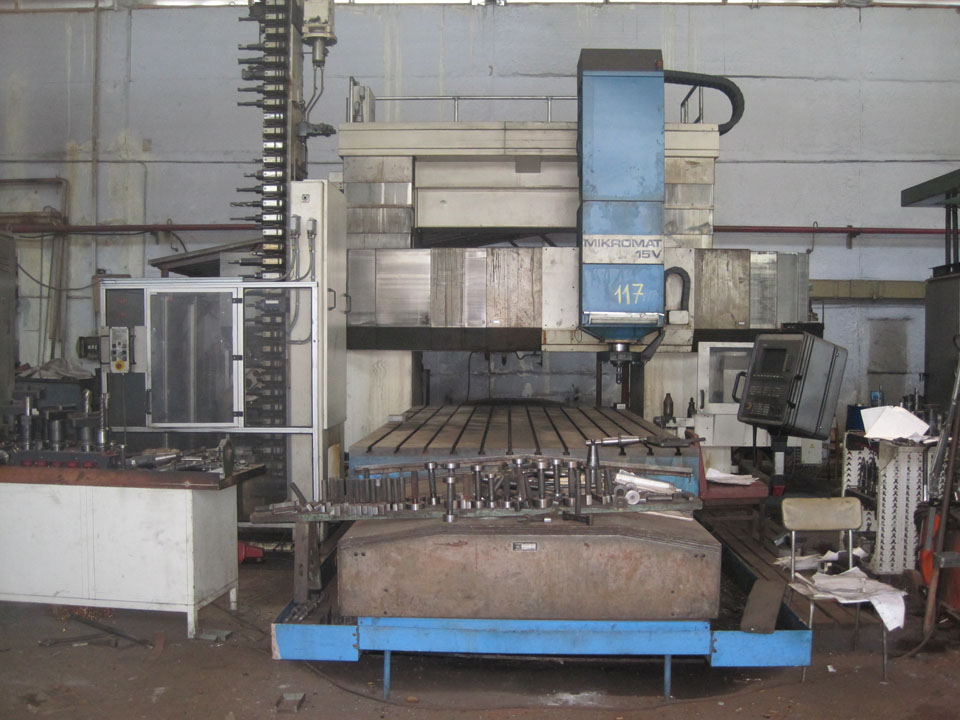

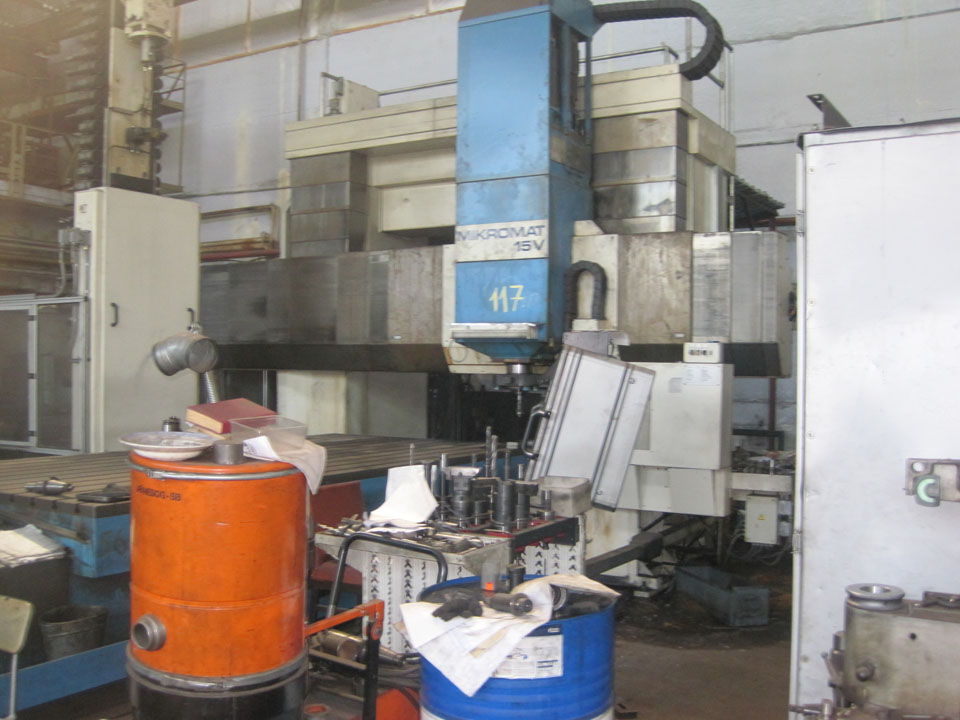

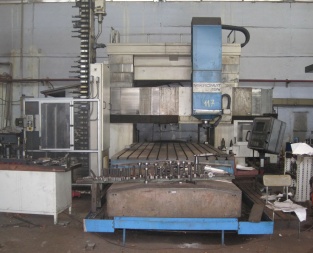

High-precision and high-performance double-column vertical boring machine MIKROMAT 15V
Serial number: 5027
YOM: 1994
Manufacturer: Mikromat
Made in: Germany
High-precision and high-performance double-column vertical boring machine MIKROMAT 15V is intended for processing of large-size details both in the main production and in production of accessories and attachments. In addition, it can be widely used in many productions of a similar range of works.
The machine has the accessory for changing of tool having 32 positions.
Specification:
Table:
Table area: 2000х4000 mm
Max. work-piece weight: 8000 kg
Distance between columns: 2250 mm
Working space:
X-axis:
Transversal table travel: 4500 mm
Supply speed/rapid stroke: 0,1-12000 mm/min
Y-axis:
Transversal travel of spindle headstock: 3000 mm
Supply speed/rapid stroke: 0,1-12000 mm/min
Z-axis and main drive:
Boring spindle stroke: 350 mm
Sleeve diameter: 200 mm
Supply speed/rapid stroke: 0/1-8000 mm/min
Diameter of front spindle support: 120 mm
Number of spindle revs (20% ЕD): 2500 rpm
Drive power: 22 kW
Spindle torque: 800 Nm
Max. diameter in steel: 60 mm
Max. thread diameter: M 48
Z-axis:
Travel on traverse's height: 900 mm
Traverse travel speed: 0/1-4000 mm/min
Precision:
Display precisions of X-axis, Y-axis, W-axis, Z-axis: 0,001 mm
C-axis: 0,1 degrees
Precision of X-axis, Y-axis, Z-axis: 0,003 mm/1000 mm
Number of controlled axes: 3
Dimensions: 12000х8000х5200 mm
Weight: 52000 kg
Technical condition for this period:
• machine is working, in a good condition,
• technological precision is ensured in accordance with passport data,
• wear of mechanical part of the machine - 40%.
