Offer #920

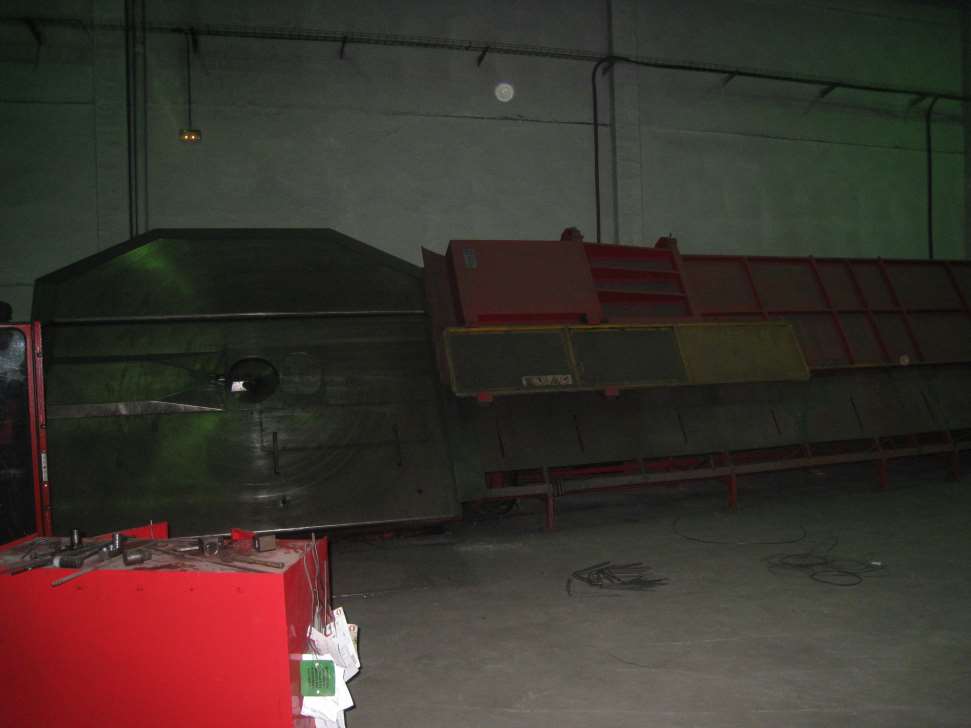

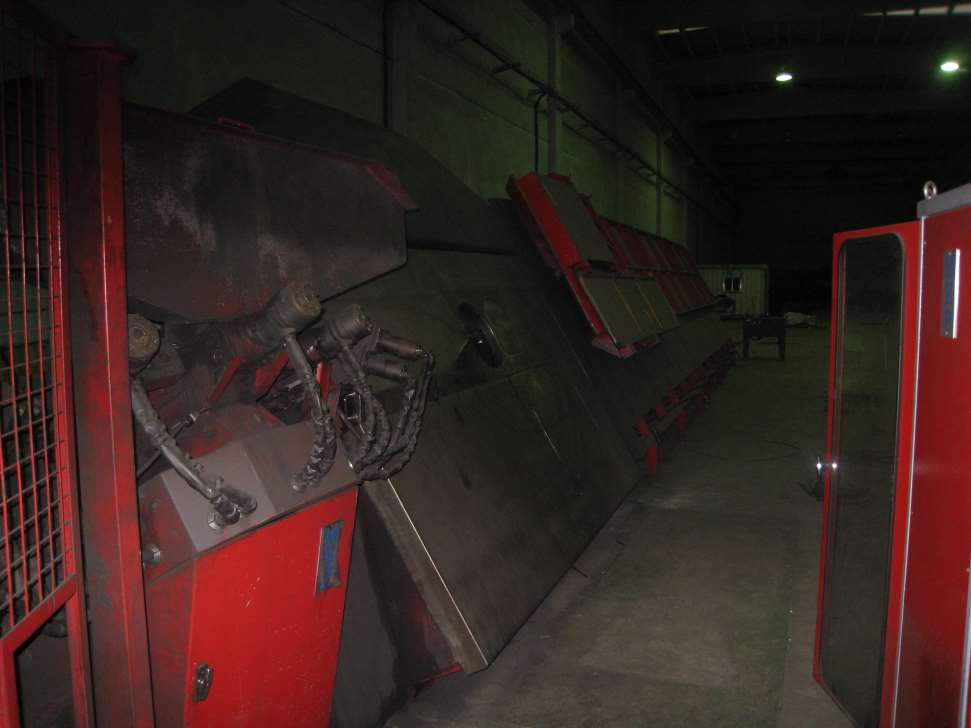

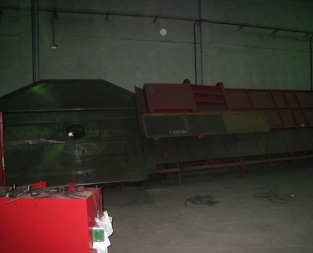

Automatic stirrup bending machine MEP MINISYNTAX
YOM: 2007
Control: CNC
Manufacturer: MEP
Made in: Italy
Fully automatic, electronically-programmable off-coil machine, for the production of small and large size stirrups,
straightened cut-to-length bars and shaped bars with bends at one or both ends up to a length of 12m. The

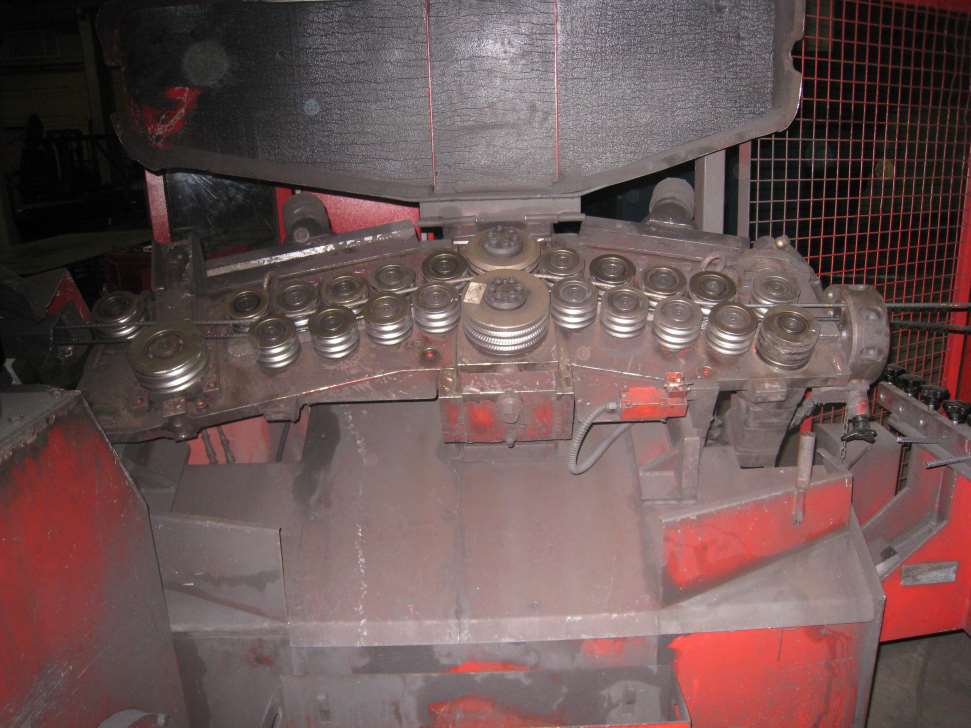

multi-line prefeeding device, together with the 5th generation MEP SYSTEM straightening group and the SECONDARY
FEEDING unit guarantee the maximum flexibility and production quality for the entire range of wire diameters which
may be selected by the programmer.
Specification:
Mam wire diameters:
-Operation with one wire: 6 to 16 mm
-Operation with two wires: 6 to 12 mm
Max wire length: 9.5-12 m
The possibility of two rods with a diameter 8, 10, 12 mm at the same time
Functions for stirrups (progressive):
-Number of sides set: 28
-Number of angles set: 27
-Number of stirrups programmable with memmory code: 9999
Dimensions of stirrups and bent bars:
-Max side (with clockwise bending): 1300 mm
-Max side (with counter-clockwise bending): 2500 mm
-Min side: 50 mm
-Min first hook: 35 mm (W/6mm WIRE)
-Min last hook: 10 mm (W/6mm WIRE)
-Max clockwise bending angle: 180 degrees
-Max counter-clockwise bending agle: 180 degrees
Dimensions of the machinery:
-Bending machine (excluding pay-off stations): 11277x6197 mm
-Coil pay-off stations (single element): 2184x2311x2489 mm
-Control unit: 533x533x1854 mm
Machine weight: 4100 kg
