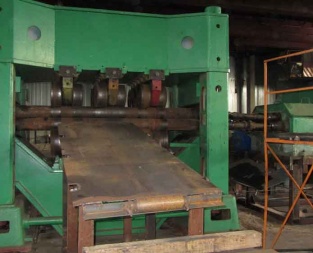

Sheet metal levelling machine UBR 16x2500/1-10

Offer #980

Sheet metal levelling machine UBR 16x2500/1-10
Manufacturer: VEB Blema Gotha
Made in: Germany

Machinery is in working condition. Electrical part is new made.

Specification:

Max sheet width: 2500 mm
Max sheet thickness: 16 mm
Min sheet thickness: 6 mm
Number of straightening rolls:
 -Top: 5
 -Lower: 6
 -Total: 11
Number of driving rolls: 11
Diameter of straightening rolls: 180 mm
Step of straightening rolls: 190 mm
Straightening speed: 10 m/min
Way of traverse: -10...+40 mm
Speed of adjustment of traverse: 1 mm/sec
Way of swivel of below traverse: 10 mm
Total power requirement: 61 kW
Total weight: 46100 kg
