Offer #679
Turret punch press FINN-POWER F5-25 SB
Control: CNC SIEMENS Sinumerik
YOM: 1998
Manufacturer: Finn-Power Oy
Made in: Finland
Specification:
Max working pressure: 300 bar
Ram force: 230 kN
Punch stroke: hydraulic
Stroke depth adjustment: numerically adjustable
Stroke length adjustment: programmable
Ram speed adjustment: programmable
Number of turret stations: 20 pcs
Tools: Thick Turret
Max punch diameter: 89 mm
CNC Index Tool:
-Number of Index Tool stations: std. 2 pcs (max 10 pcs)
-Max punch diameter: 89 mm
-Max tool rotation: 58 r/min
Max material thickness: 8 mm
Max sheet weight: 200 kg
Clamps: pneumatic 2 pcs (optional 3 pcs)
Max sheet size (X x Y): 2530 mm x 1270 mm
X-traverse: 2584 mm (X-42...X2542)
Y-traverse: 1317 mm (Y-25...Y1292)
Axis speed (X-axis), max: 90 m/min
Axis speed (Y-axis), max: 60 m/min
Traversing speed, max: 108 m/min
Hit speed, max:
-1 mm between holes: 600 1/min
-25 mm between holes: 320 1/min
-250 mm between holes: 140 1/min
Punching accuracy according to LKP-7100:
-Hole location deviation (X/Y axes), max: 0.1 mm
-Hole-to-hole distance deviation (X/Y axes), max: +/- 0.05 mm
-Angular deviation (CNC Index Tool), max: +/- 1 degree
Positioning accuracy according to VDI/DGQ 3441:
-Positional deviation Pa (X/Y axes): 0.08 mm (+/- 0.04 mm)
-Positional scatter Ps (X/Y axes): 0.04 mm (+/- 0.02 mm)
Turret rotation: 23.8 r/min
Tool change time: 1...3 sec
Work chute (option), max part size: 200 mm x 200 mm
CNC control:
-Siemens Sinumeric 840D
-or Fanuc 16iPA
-or Fanuc 18iPB (series 11.2)
Program memory:
-Siemens: 1.5 MB
-Fanuc: 512 kB
Serial interface: RS 232C/V 24
Machine length x width x height (with auxiliary table): 5.4 x 5.6 x 2.5 m
Total weight: 10400 kg

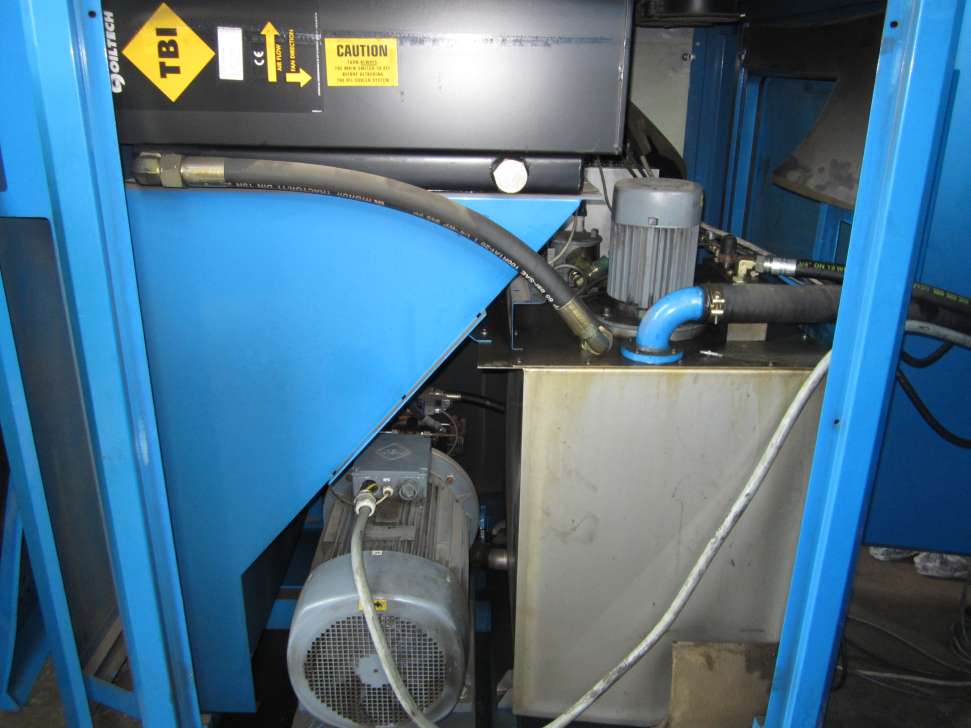

Hydraulic unit drained weight: 750 kg
Oil tank volume: 330 l
Power supply: 40 kVa
Power consumption, average: 20 kW
Machine weight: 13500 kg
