Offer #950

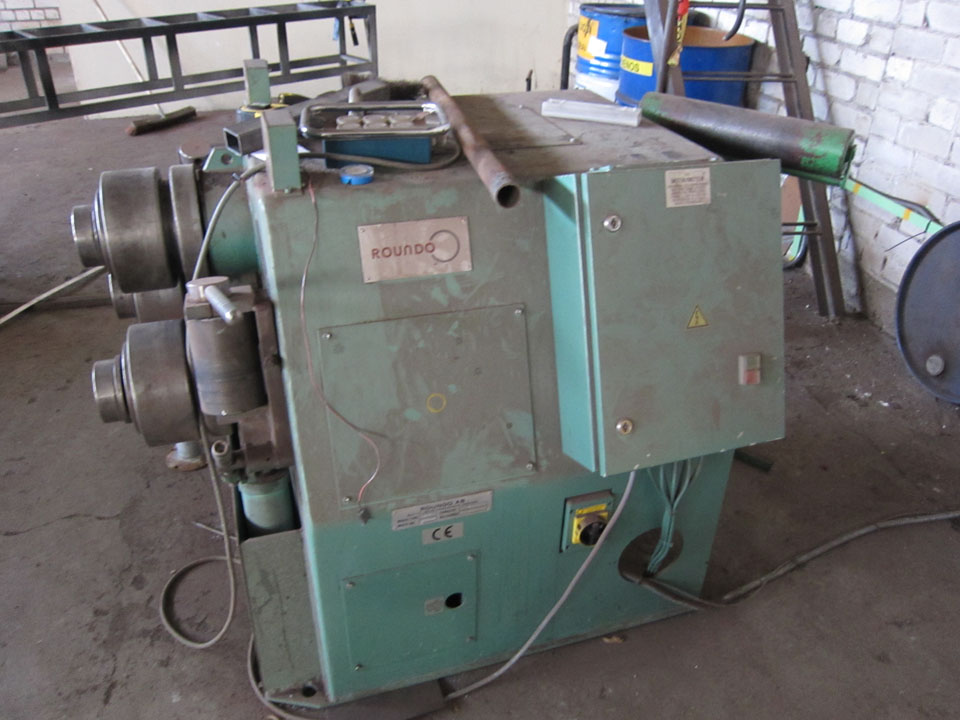

Section bending machine ROUNDO Type R-3
YOM: 2006
Made in: Sweden
Manufacturer: Roundo AB
Machinery is almost new. It has been used for 2 days only!
Specification:
Roll diameter: 225 mm
Working speed: 7 m/min
Upper shaft diameter: 225 mm
Angle Leg-In: dimensions - min. bending diameter: 60×60×6 - diam. 750 mm
Angle Leg-Out: dimensions - min. bending diameter: 75×75×7 - diam. 750 mm
Strip on the edge: dimensions - min. bending diameter: 75×15 - diam. 500 mm
Strip on the wide side: dimensions - min. bending diameter: 200×20 - diam. 500 mm
Square bar: dimensions - min. bending diameter: 45×45 - diam. 450 mm
Round bar: dimensions - min. bending diameter: 50 - diam. 500 (special rolls) mm
Circular pipe: dimensions - min. bending diameter: 76 - diam. 750 (special rolls) mm
Power: 4,0 kW
Overall dimensions: 1130×1000×1080 mm
Weight: 900 kg
