Hydraulic 4-rolls plate bending machine IV2424F1

Offer #1729

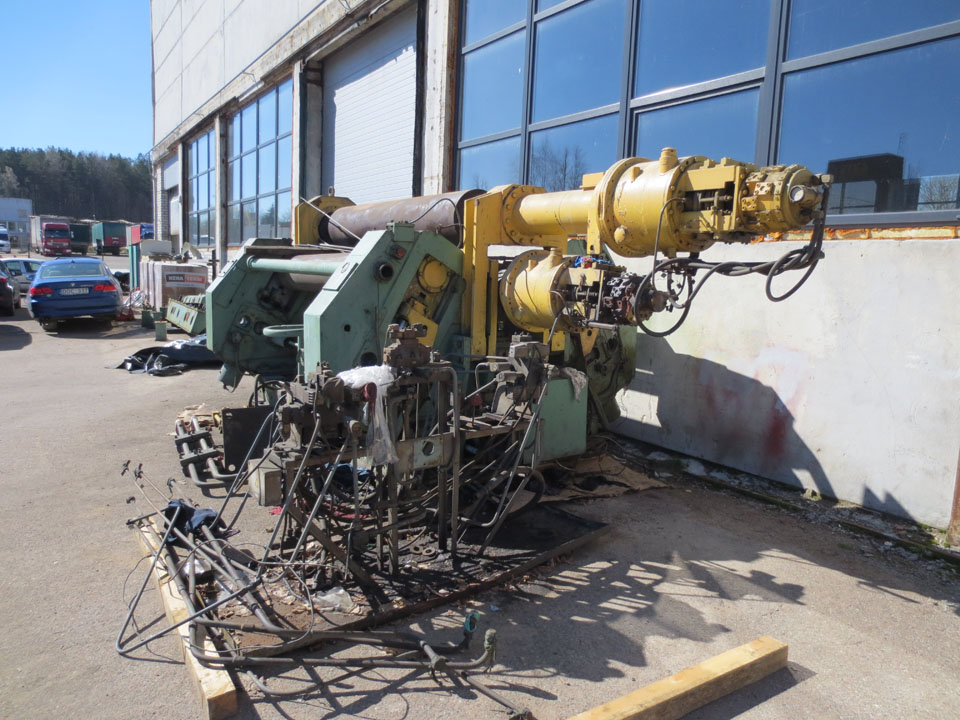

Hydraulic 4-rolls plate bending machine IV2424F1
YOM: 2009
Manufacturer: RAZYAN
Made in: Russia

It is used for bending of cylindrical and conical shells or their elements from sheet material in a cold and hot state.

Specification:

Max. plate thickness:
 -At bending: 28 mm
 -At prebending: 24 mm
Max. plate width: 2500 mm
Min. bending radius: 380 mm
Bending speed: 5000-7500 mm/min
Upper roll diameter: 450-1,55 mm
Total power: 25 kW
Main drive motor power: 37 kW
Voltage: 380 V; 50 Hz
Dimensions:
 -Length: 8900 mm
 -Width: 2800 mm
 -Height: 2235 mm
Weight: 35400 kg
