Offer #2177

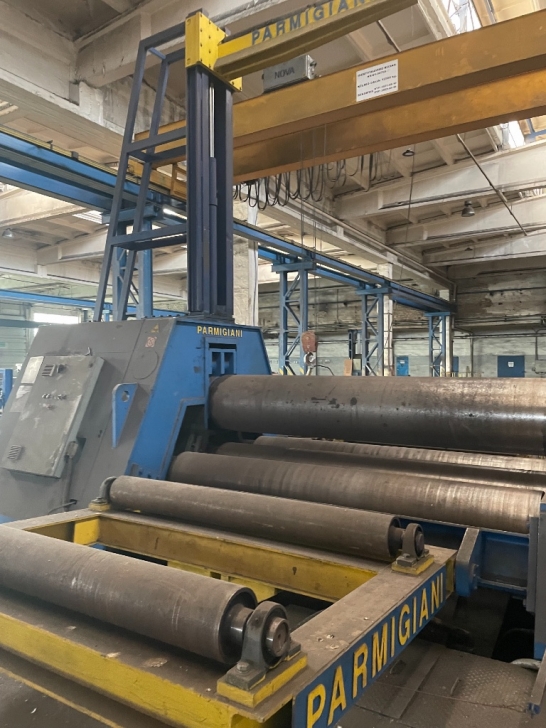

4 roll plate bending machine PARMIGIANI VBH 3100x65/54
YOM: 2004
Manufacturer: PARMIGIANI MACCHINE
Made in: Italy
Machine is under power, in perfect working condition.
Specification:
Max. plate thickness at bending: 65 mm
Top roll diameter: 600 mm
Rolls length: 3100 mm
Number of rolls: 4
Number of driving rolls: 2
Central lower roll diameter: 570
Side rolls diameter: 460
Main electrical supply:
-Voltage: 400
-Frequency: 50 Hz
-Phases: 3
Total installed power: 88 Kw
Hydraulic unit oil tank capacity: 1000 liters
Machine dimensions:
-Length: 6300 mm
-Height: 3400 mm
-Height with with top support: 6780 mm
-Height with with top support: 6780 mm
-Width: 3320 mm
-Width with two side supports: 7200 mm
Weight of the machine: 65000 kg
-Width with two side supports: 7200 mm
Weight of the machine: 65000 kg
