Offer #2186

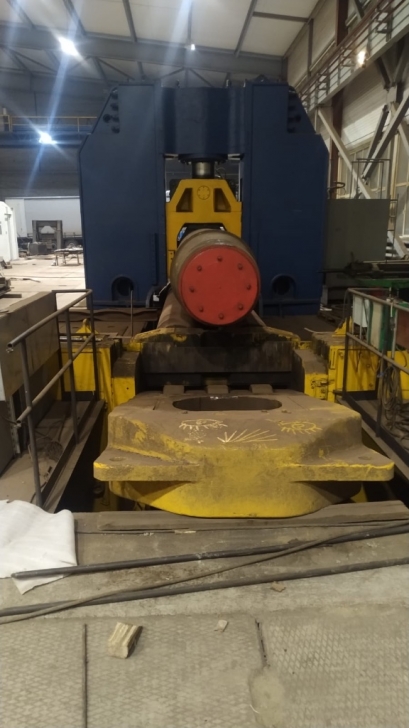

3 roll plate bending machine VERRINA CLS 95/180-4080
YOM: 1978
Manufacturer: VERRINA
Made in: Italy
Description:
Working length of the rolls: 4000 mm
Diameter of the top roll: 1100 mm
Diameter of the lower roll: 650 mm
Thickness of the bendable sheet:
-Cold bend: 95 mm
-Hot bend: 180 mm
Max. distance between top and lower rolls: 270 mm
Top roll stroke: 329 mm
Horizontal movements of the lower rolls in both directions from the middle position: possible
Cold bending:
-Sheet width: 4000 mm
-Sheet thickness: 95 mm
-Max. inside diameter of the shell: 5500 mm
Hot bending:
-Sheet width: 4000 mm
-Sheet thickness: 180 mm
-Max. inside diameter of the shell: 5500 mm
