Offer #2136
Spherical turning and grinding machine SCHIESS FRORIEP 22DSK
YOM: 1981
Manufacturer: SCHIESS FRORIEP
Made in: Germany
Specification:

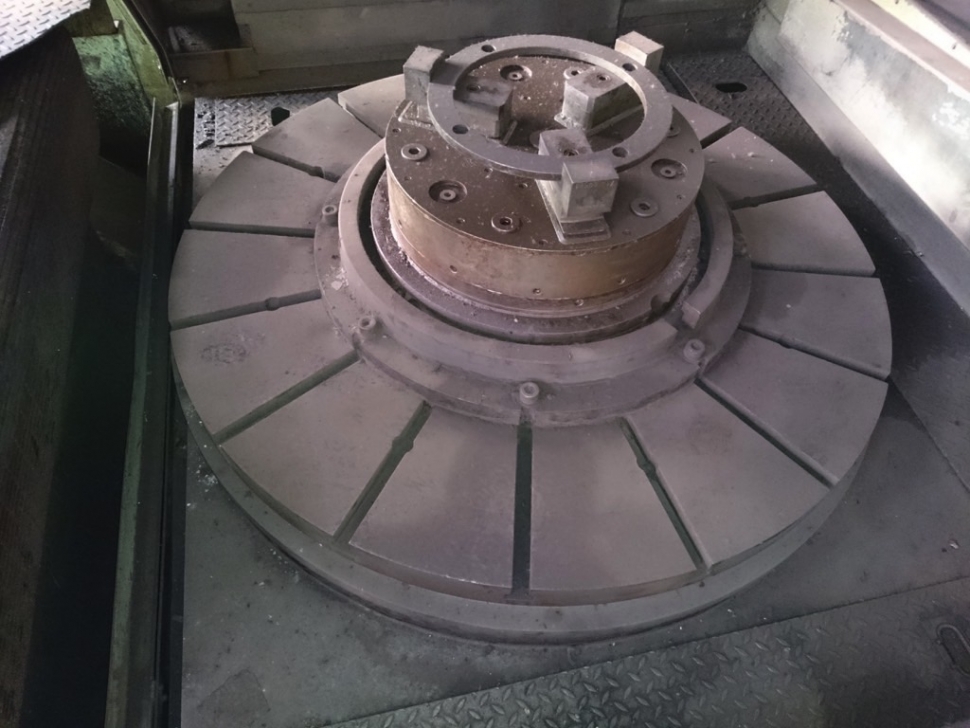

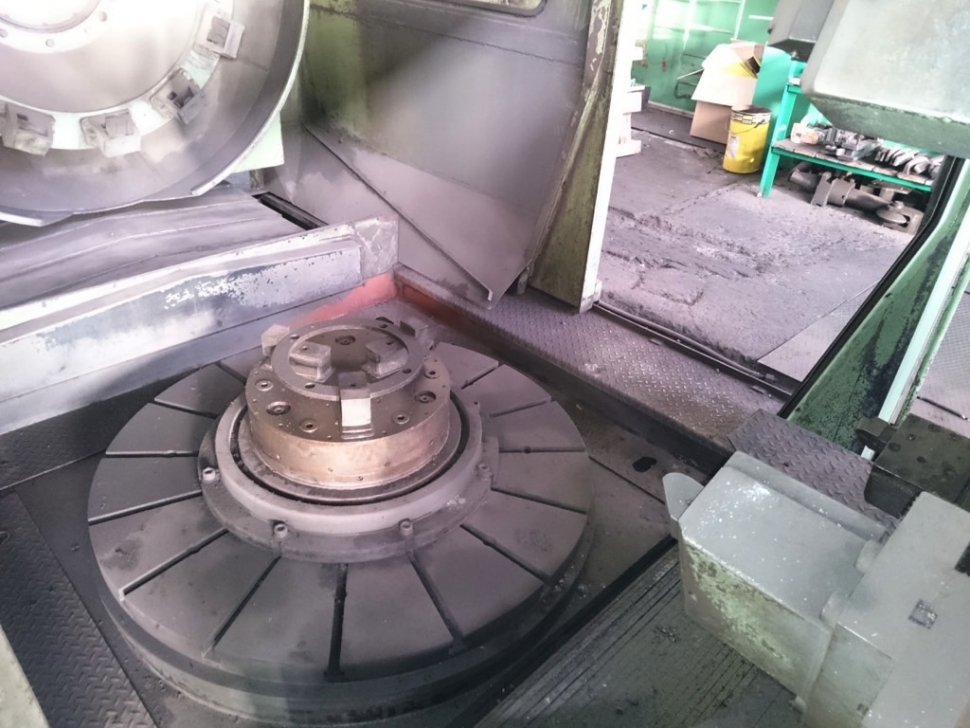

Table diameter: 1600 mm
Clamping diameter (of the table):
-with external clamping (min/max.): 300/450 mm
-with internal clamping (min/max.): 400/500 mm
Clamping diameter (of the counter support):
-with external clamping (min/max.): 300/450 mm
-with internal clamping (min/max.): 300/400 mm
Bore diameter (max.): 2200 mm
Counter support movement track: 600 mm
Workpiece height (max.): 2600 mm

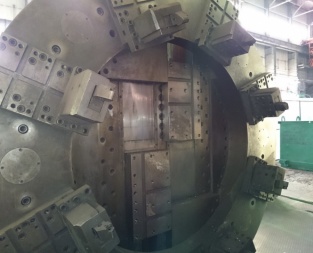

Boring disk diameter: 1600 mm
Boring slide movement track: 1000 mm
Sliders tool holders movement track: 825 mm
The height of the axis of the boring disk above the upper edge of the table: 1500 mm
